Vertical plate operation of aluminum casting rolling machine(caster)

1 standing board preparation

A check that all parts of the casting mill and the cooling water system are functioning properly. When necessary, try running and clean the surface of each roll, especially the casting roll

B. start the high pressure pump, adjust the pressure, adjust the roll gap, roll gap as required, generally control between 6.0-6.2mm, the transmission side than the operation test 0.02-0.03mm

C. preheat and lubricate casting rolls by flame spraying

D. removed from the furnace feeding mouth, check, and assembled at the mouthpiece assembly platform, with a pin fixed shunt block and edge block, cover the mouth fan. Before box height mark

E. will be placed in the mouth of the lifting platform, is to adjust the keyway, on the left, and size, good compression screw, the mouth to slow roll, adjustable gap good mouth roller, and adjust the casting area to the appropriate position, mounted on the handle and press, the roller grinding ear and reverse rotation. Lips

F. came up with the box frame, the cotton mouth plug gap, to prevent leakage of aluminum

G. frame forward box are connected with grooves in the cotton plug, adjust the position between the pipe and the buoy

H. will be around the releasing box set, set up temporary launder

I. put all tools in place, especially large pincers, not less than 2

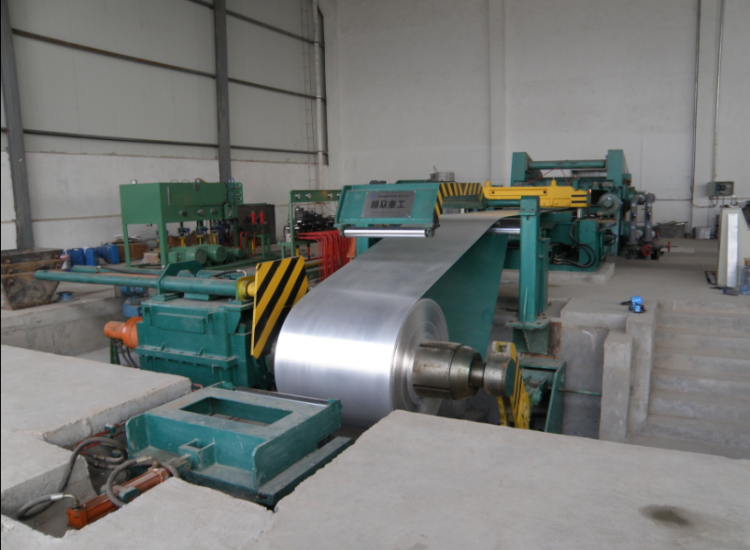

Aluminum casting rolling mill
